ALPINE WALLMOUNTED SERIES

The Alpine Series: Advanced Wall-Mounted Supercapacitor Storage.

WEST Alpine Series Wall Unit

The WEST Alpine Series utilizes our advanced Optimized Supercapacitor storage technology. Designed for extremely long life (up to 45 years), the Alpine Series is the ultimate choice in contemporary storage technologies.

Energy can be safely used with our EZ-Power™ technology, featuring short circuit detection, multiple unit imbalance control, and controlled load charge-up. Units are completely modular with unlimited parallel compatibility.

45 year
Design Life
20 year
Warranty
System
Monitoring

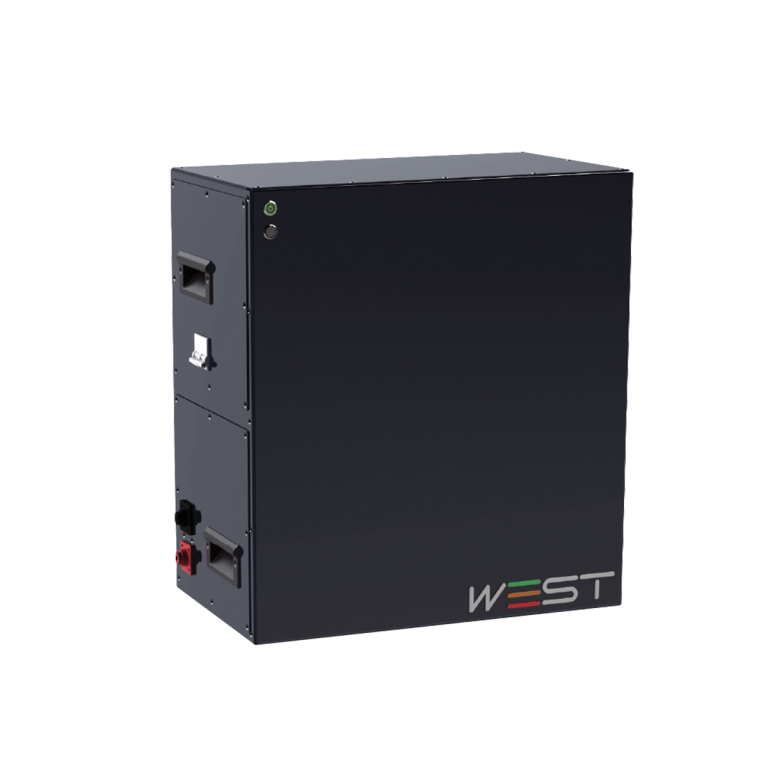

WEST Alpine Double

DOUBLE

3.3kWh
  • Capacity (kWh / Ah): 3.3 / 67
  • Module Weight: 71.6 kg
  • Crate Weight: 9.6 kg
  • Dimensions (mm): 349.5 x 586 x 320
  • Rated Charge Voltage: 53.6 V
  • Max Cont. Charge Voltage: 53.6 V
  • Max Surge Voltage: 54.0 V
  • Rec. Discharge Voltage: 46.0 V
  • Rated Discharge Voltage: 45.5 V
  • Max Cont. Current: 100 A
  • Max Peak Current: 125 A
  • Max Charge/Discharge Rate: 1.5 C
WEST Alpine Triple

TRIPLE

4.95kWh
  • Capacity (kWh / Ah): 4.95 / 100
  • Module Weight: 102.4 kg
  • Crate Weight: 11 kg
  • Dimensions (mm): 349.5 x 586 x 470
  • Rated Charge Voltage: 53.6 V
  • Max Cont. Charge Voltage: 53.6 V
  • Max Surge Voltage: 54.0 V
  • Rec. Discharge Voltage: 46.0 V
  • Rated Discharge Voltage: 45.5 V
  • Max Cont. Current: 200 A
  • Max Peak Current: 250 A
  • Max Charge/Discharge Rate: 2 C
Most Popular
WEST Alpine Quad

QUAD

6.6kWh
  • Capacity (kWh / Ah): 6.6 / 134
  • Module Weight: 135.8 kg
  • Crate Weight: 13.6 kg
  • Dimensions (mm): 349.5 x 586 x 621
  • Rated Charge Voltage: 53.6 V
  • Max Cont. Charge Voltage: 53.6 V
  • Max Surge Voltage: 54.0 V
  • Rec. Discharge Voltage: 46.0 V
  • Rated Discharge Voltage: 45.5 V
  • Max Cont. Current: 250 A
  • Max Peak Current: 250 A
  • Max Charge/Discharge Rate: 1.5 C

Technical Specifications

  • Storage Type: Optimized Supercapacitor
  • Monitoring: Wi-Fi, Android, iOS App
  • Temperature Range: -40°C to 65°C
  • Round Trip Efficiency: >97% (Module) / 99.1% (Capacitor)
  • IP Rating: IP30
  • Terminal Connections: M8

Safety Features

The Alpine Series features dual current management and patented CLC for controlled power release.

  • Dual Protection: Electronic SSR & Thermal DC Breaker
  • Electronic Monitoring: Connection, Voltage, & Cell Temperature
  • EZ-Power™: Safe activation & limited energy release
  • Zero Fire Risk: Electrostatic tech with no thermal runaway

Benefits include negligible degradation over lifetime, ultra fast charge and discharge, no thermal runaway hazard, simple operation, practically unlimited cycles, -40°C to 65°C operating temperature and 97% round trip efficiency. The Alpine Series is the ultimate choice in contemporary storage technologies.
